Synology RackStation RS820+ NAS
Product Specifications

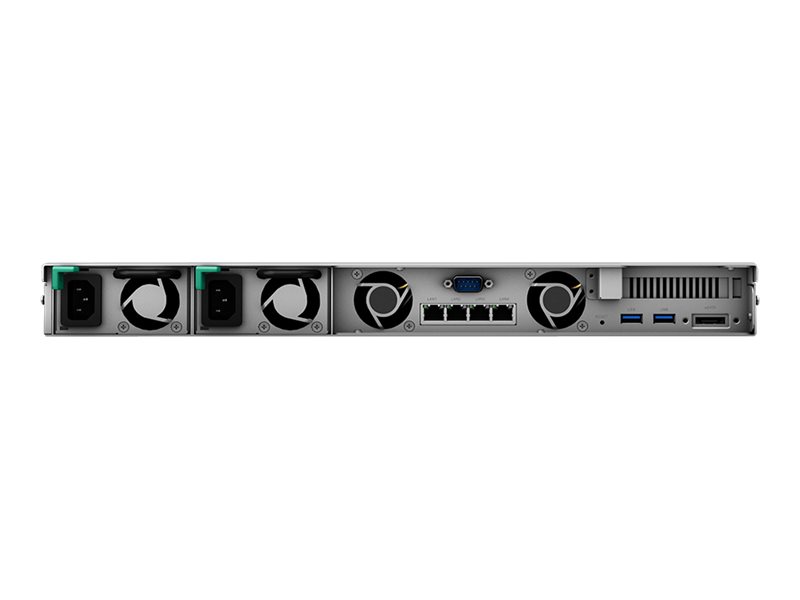

Interfaces
| Port RJ-45 |
4 x 10/100/1000M |
| Port USB |
2 x USB3.0 |
| Port eSATA |
1 x eSATA |
| HDD Interface |
4 x 3.5"/2.5" SATA HDD/SSD (drives not included) |
Model
| Brand |
Synology |
| Model |
RS820+ |
Configuration
| Form Factor |
1U |
| Processor |
Intel Atom C3538 Quad-core 2.1GHz |
| Default/ Max. Memory |
2 GB DDR4 Non-ECC onboard (expandable up to 18 GB) |
Hard Drive Performance
| RAID |
Synology Hybrid RAID (SHR), Basic, JBOD, RAID 0, RAID 1, RAID 5, RAID 6, RAID 10 |
Conveniences
| Supported Protocols |
SMB, AFP, NFS, FTP, WebDAV, CalDAV, iSCSI, Telnet, SSH, SNMP, VPN (PPTP, OpenVPN , L2TP) |
Power
| Power |
100V to 240V AC, 50/60Hz, single phase |
Features
| Features |
4-core, 2.1 GHz CPU with AES-NI support. 2 GB DDR4 memory expandable up to 18 GB
Outstanding 10GbE sequential performance at over 1,621 MB/s reading and 599 MB/s writing
Scale up to 8 drives with Synology Expansion Unit RX418
One PCIe 3.0 slot for an optional 10GbE add-in network interface card, or an M2D18 M.2 SSD adapter card
Advanced Btrfs file system offering 65,000 system-wide snapshots and 1,024 snapshots per shared folder
Synology High Availability (SHA) providing continuous services with seamless transitioning between clustered servers |
| Usage |
High read/write performance with RAID |
Environmental
| Temperature |
Operating temperature: 0°C to 35°C (32°F to 95°F)
Storage temperature: -20°C to 60°C (-5°F to 140°F) |
| Humidity |
5-95% R.H |
Dimensions & Weight
| Dimensions |
1.73" x 16.95" x 18.02" /1.73" x 18.90" x 19.36" (with server ears) |
| Weight |
14.11 lbs. |
Package Contents
| Package Contents |
1 x RS820+ Main Unit
1 x Quick Installation Guide
1 x Accessory pack
1 x AC power cord |
